HeyPico API Documentation

Overview

HeyPico provides three APIs. Which one should you use?

LLM API (REST)

The simplest way to integrate AI into your application. Standard REST endpoints compatible with the OpenAI SDK. Use this if you just want to make chat completions or list models using familiar tools (curl, OpenAI Python/JS SDK, LangChain, etc.).

Base URL: https://api.heypico.ai/v1
Protocol: REST (OpenAI-compatible)
Auth: Bearer token (hp_live_...)

Best for: Simple chat, model access, OpenAI SDK compatibility

MCP LLM (JSON-RPC)

A full AI agent accessed via JSON-RPC 2.0. Unlike the REST API, this maintains conversation memory, can generate images, manage Google Calendar, search the web, analyze images, and more. Use this when you need the complete HeyPico AI agent capabilities.

Base URL: https://public-api.heypico.ai/mcp/llm
Protocol: JSON-RPC 2.0
Auth: Bearer token (hp_live_...)

Best for: Multi-turn conversations, multi-modal tasks, agent workflows

MCP Automation (JSON-RPC)

Control Android devices programmatically via JSON-RPC 2.0. Use this to automate taps, scrolls, text input, app management, and device control for testing or AI-powered mobile assistance.

Base URL: https://public-api.heypico.ai/mcp/automation
Protocol: JSON-RPC 2.0
Auth: Bearer token (hp_live_...)

Best for: Android device automation, testing, mobile AI agents

Authentication

All API requests require authentication using an API key with the hp_live_ prefix.

Header:

Authorization: Bearer hp_live_xxxxxxxxxxxxxxxxxxxx

How to get an API key:

Open the HeyPico App
Go to Settings → API Keys
Generate a new API key
Copy the Key

Keep your API key secure. Never expose it in client-side code or version control.

Quickstart

Get up and running with HeyPico APIs in under a minute.

Prerequisites

Before you begin, make sure you have:

A HeyPico account — Download the HeyPico app and sign up
An API key — Follow the Authentication steps above
curl (or any HTTP client) installed on your machine

1. Verify Your API Key

Run this command to list available models. If you see a JSON response, your key is working:

curl https://api.heypico.ai/v1/models \
  -H "Authorization: Bearer hp_live_xxxxxxxx"

Expected result: A 200 OK response with a list of models. If you get a 401, your API key is missing or incorrect.

2. Make Your First Chat Completion

Send a simple message to an AI model:

curl https://api.heypico.ai/v1/chat/completions \
  -H "Authorization: Bearer hp_live_xxxxxxxx" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "pico-1-0",
    "messages": [
      {"role": "user", "content": "Say hello in one word"}
    ]
  }'

Expected result: A 200 OK response with the model's reply inside choices[0].message.content.

3. Verify Your Setup

  # List models — checks auth and connectivity
curl -s https://api.heypico.ai/v1/models \
  -H "Authorization: Bearer hp_live_xxxxxxxx" | head -c 100

  # Chat — checks the full request pipeline
curl -s https://api.heypico.ai/v1/chat/completions \
  -H "Authorization: Bearer hp_live_xxxxxxxx" \
  -H "Content-Type: application/json" \
  -d '{"model": "pico-1-0", "messages": [{"role": "user", "content": "Say hello"}]}' | head -c 200

Both commands should return successful JSON responses. You are now ready to use HeyPico APIs.

LLM API (REST / OpenAI-compatible)

The LLM API provides an OpenAI-compatible interface to HeyPico's AI models. You can use any OpenAI SDK, library, or tool by simply changing the base_url to https://api.heypico.ai/v1.

1. List Models

Returns a list of available AI models.

GET /v1/models

Request:

curl https://api.heypico.ai/v1/models \
  -H "Authorization: Bearer hp_live_xxxxxxxx"

Response (200 OK):

{
  "object": "list",
  "data": [
    {
      "id": "pico-1-0",
      "object": "model",
      "created": 1741771234,
      "owned_by": "heypico"
    }
  ]
}

Available Models:

pico-1-0
opus-4-6
sonnet-4-5
haiku-3
deepseek-v4-flash
deepseek-v3-2
glm-4-7-flash
glm-5
gpt-5-4-mini
gpt-5-4
gpt-5-2-chat
gpt-oss-120b
gpt-oss-20b
gemini-3-5-flash
gemini-3-1-flash-lite
gemini-3-1-pro
grok-4-2-reasoning
kimi-k2-5
kimi-k2-thinking
llama-3-70b-instruct
llama-3-8b-instruct
mistral-large-3
mistral-7b-instruct
nova-pro
nova-lite
nova-micro
qwen3-next-80b-a3b

Run GET /v1/models to see all currently available models.

2. Chat Completion

Creates a chat completion with the specified model.

POST /v1/chat/completions

Request:

curl https://api.heypico.ai/v1/chat/completions \
  -H "Authorization: Bearer hp_live_xxxxxxxx" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "pico-1-0",
    "messages": [
      {"role": "system", "content": "You are a helpful assistant."},
      {"role": "user", "content": "What is the capital of France?"}
    ]
  }'

Parameters:

Parameter	Type	Required	Description
`model`	string	No	Model ID. Falls back to default if omitted or unknown
`messages`	array	Yes	Array of message objects with `role` and `content`
`max_tokens`	integer	No	Maximum tokens to generate
`temperature`	number	No	Sampling temperature (0.0–1.0)
`stream`	boolean	No	If `true`, response is streamed via SSE

Messages format:

{
  "role": "system" | "user" | "assistant",
  "content": "string"
}

Response (200 OK):

{
  "id": "chatcmpl-a1b2c3d4",
  "object": "chat.completion",
  "created": 1741771234,
  "model": "pico-1-0",
  "choices": [
    {
      "index": 0,
      "message": {
        "role": "assistant",
        "content": "The capital of France is Paris."
      },
      "finish_reason": "stop"
    }
  ],
  "usage": {
    "prompt_tokens": 23,
    "completion_tokens": 7,
    "total_tokens": 30
  }
}

3. Streaming

Add "stream": true to get SSE (Server-Sent Events) response:

curl -N https://api.heypico.ai/v1/chat/completions \
  -H "Authorization: Bearer hp_live_xxx" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "pico-1-0",
    "messages": [{"role": "user", "content": "Hello"}],
    "stream": true
  }'

Response format:

data: {"choices":[{"delta":{"role":"assistant"},"index":0}]}
data: {"choices":[{"delta":{"content":"Hello"},"index":0}]}
data: {"choices":[{"delta":{"content":"!"},"index":0}]}
data: {"choices":[{"delta":{},"finish_reason":"stop","index":0}]}
data: [DONE]

LLM API Usage Examples


from openai import OpenAI

client = OpenAI(
    base_url="https://api.heypico.ai/v1",
    api_key="hp_live_xxxxxxxx"
)

  # List models
for m in client.models.list():
    print(m.id)

  # Chat completion
response = client.chat.completions.create(
    model="pico-1-0",
    messages=[{"role": "user", "content": "Hello!"}]
)
print(response.choices[0].message.content)

  # Streaming
stream = client.chat.completions.create(
    model="amazon.nova-pro-v1:0",
    messages=[{"role": "user", "content": "Tell me a story"}],
    stream=True
)
for chunk in stream:
    print(chunk.choices[0].delta.content or "", end="")

Anthropic-compatible API

HeyPico also exposes the LLM API in the Anthropic Messages format, so you can use it directly with Claude Desktop, Claude Code (CLI), or any Anthropic SDK client.

Base URL: https://api.heypico.ai/anthropic
Protocol: REST (Anthropic Messages API)
Auth: x-api-key header (hp_live_...) or Authorization: Bearer

Endpoints

Method	Path	Description
GET	`/anthropic/v1/models`	List available models
POST	`/anthropic/v1/messages`	Create a message (supports streaming)

1. List Models

curl https://api.heypico.ai/anthropic/v1/models \
  -H "x-api-key: hp_live_xxxxxxxxxxxxxxxxxxxx"

2. Chat Completion

curl https://api.heypico.ai/anthropic/v1/messages \
  -H "Content-Type: application/json" \
  -H "x-api-key: hp_live_xxxxxxxxxxxxxxxxxxxx" \
  -d '{
    "model": "pico-1-0",
    "max_tokens": 1024,
    "messages": [
      {"role": "user", "content": "Say hello"}
    ]
  }'

3. Streaming

Add "stream": true to the request body to receive Server-Sent Events (SSE) in the Anthropic streaming format.

curl -N https://api.heypico.ai/anthropic/v1/messages \
  -H "Content-Type: application/json" \
  -H "x-api-key: hp_live_xxxxxxxxxxxxxxxxxxxx" \
  -d '{
    "model": "pico-1-0",
    "max_tokens": 1024,
    "stream": true,
    "messages": [
      {"role": "user", "content": "Count to 5"}
    ]
  }'

Supported Parameters

model — a public model ID from /models (e.g. pico-1-0, opus-4-6, sonnet-4-5). Short names like claude-haiku are also accepted for compatibility
messages — conversation history (supports text, tool_use, tool_result blocks)
system — system prompt
max_tokens — maximum output tokens
temperature, top_k, top_p — sampling parameters
stop_sequences — custom stop sequences
stream — enable SSE streaming
tools, tool_choice — tool calling

Setup: Claude Desktop

Open Claude Desktop → Settings → Developer (or edit the config file directly).
Configure the connection to HeyPico:

{
  "apiKey": "hp_live_xxxxxxxxxxxxxxxxxxxx",
  "anthropicBaseUrl": "https://api.heypico.ai/anthropic"
}

Restart Claude Desktop. The model list will be fetched from /anthropic/v1/models automatically.

Note: You can use any valid HeyPico API key (hp_live_...). The gateway resolves model aliases and automatically routes to capable models, including tool calls.

Setup: Claude Code (CLI)

export ANTHROPIC_BASE_URL="https://api.heypico.ai/anthropic"
export ANTHROPIC_AUTH_TOKEN="hp_live_xxxxxxxxxxxxxxxxxxxx"

Then run claude as usual. All chat and tool calls go through HeyPico's gateway.

Tip: For development/testing use https://dev-api.heypico.ai/anthropic with a dev API key.

MCP LLM API (JSON-RPC)

The MCP LLM API provides access to HeyPico's AI agent with full capabilities via the JSON-RPC 2.0 protocol.

Agent Features

JSON-RPC 2.0 Protocol — Standard-based communication
Conversation Memory — Session-based conversation history
Multi-Modal — Text and image analysis support
Full Capabilities — Access to all HeyPico AI features

LLM Endpoint

https://public-api.heypico.ai/mcp/llm

Protocol Format

All requests use JSON-RPC 2.0:

{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "method_name",
  "params": {}
}

Available Tool

heypico_agent

Execute AI agent with full capabilities.

Method: tools/call

Parameters:

{
  "name": "heypico_agent",
  "arguments": {
    "message": "Your message to the AI agent",
    "sessionId": "optional-session-id",
    "newSession": false
  }
}

Fields:

message (required): Message to send to the HeyPico AI agent
sessionId (optional): Session ID for conversation memory
newSession (optional): Set to true to create a new session

MCP LLM Usage Examples


  # Basic request
curl -X POST https://public-api.heypico.ai/mcp/llm   -H "Content-Type: application/json"   -H "Authorization: Bearer hp_live_xxxxxxxx"   -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/call",
    "params": {
      "name": "heypico_agent",
      "arguments": {
        "message": "Generate an image of a sunset over the ocean"
      }
    }
  }'

  # With session memory
curl -X POST https://public-api.heypico.ai/mcp/llm   -H "Content-Type: application/json"   -H "Authorization: Bearer hp_live_xxxxxxxx"   -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/call",
    "params": {
      "name": "heypico_agent",
      "arguments": {
        "message": "What was the last image I asked you to generate?",
        "sessionId": "user-123-session"
      }
    }
  }'

Agent Capabilities

The HeyPico AI agent can perform:

Image Generation — Create images from text descriptions
Google Calendar — Manage calendar events
Google Sheets — Read and write spreadsheet data
Email — Send emails
Web Search — Search the internet for information
Weather — Check weather conditions
Image Analysis — Analyze images from URLs
General AI — Answer questions, write content, assist with tasks

MCP Automation API (JSON-RPC)

The MCP Automation API enables automated interaction with Android devices for testing, automation workflows, and AI-powered mobile assistance.

Automation Features

JSON-RPC 2.0 Protocol — Standard-based communication protocol
HTTP Streamable Transport — Efficient streaming for real-time interactions
38+ Automation Tools — Comprehensive Android automation capabilities (30 public + 8 hidden/advanced)

Automation Endpoint

https://public-api.heypico.ai/mcp/automation

Companion App

To use the MCP Automation API, you need the HeyPico Companion App installed on your Android device. This app acts as a bridge between the API and your device, executing automation commands.

Download & Install

Note: If you purchased a HeyPico tablet bundle, the Companion App is already installed. Skip to Permissons below.

On your own Android device:

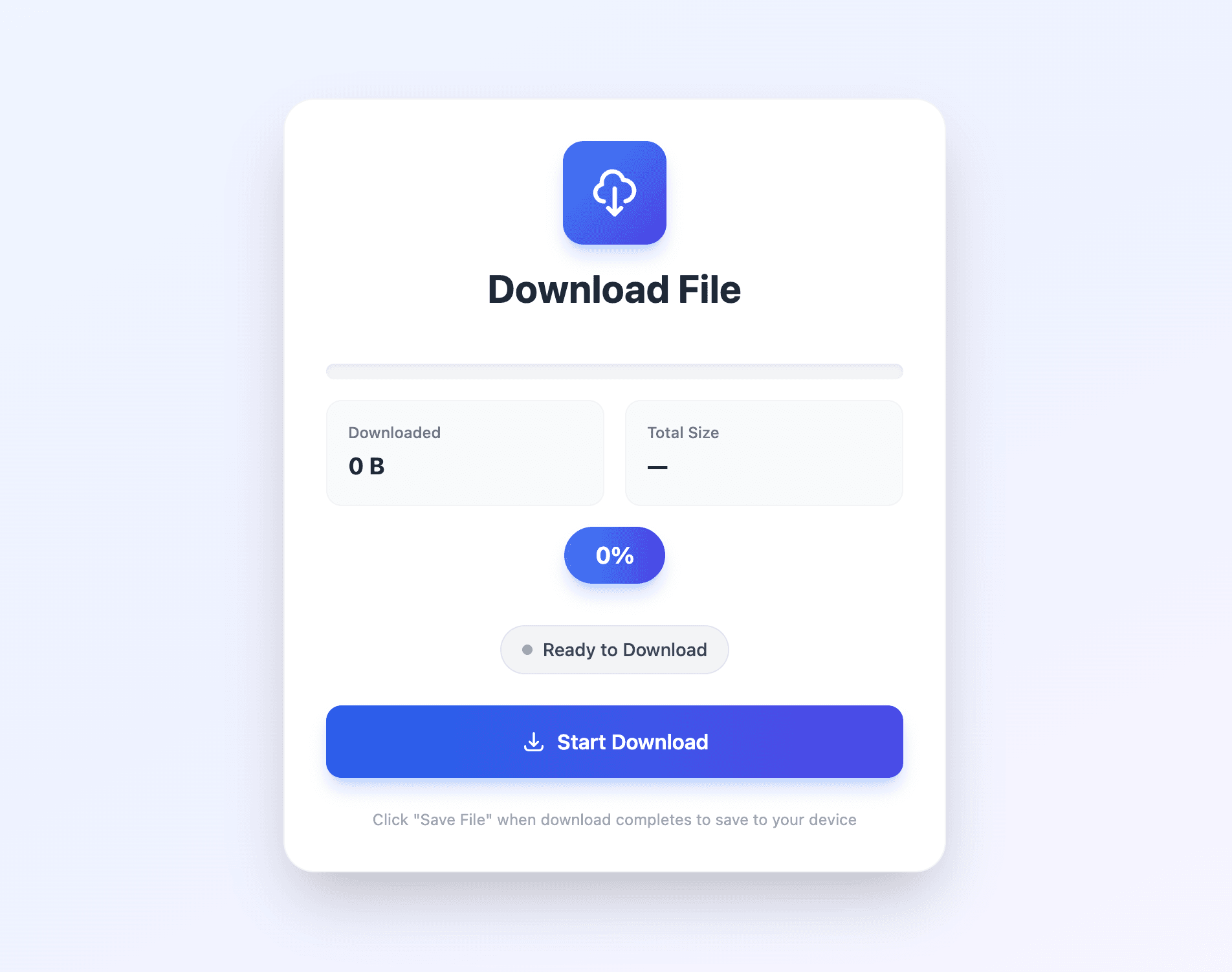

Visit https://download.heypico.ai/manual/companion-app-latest/
Download the APK file

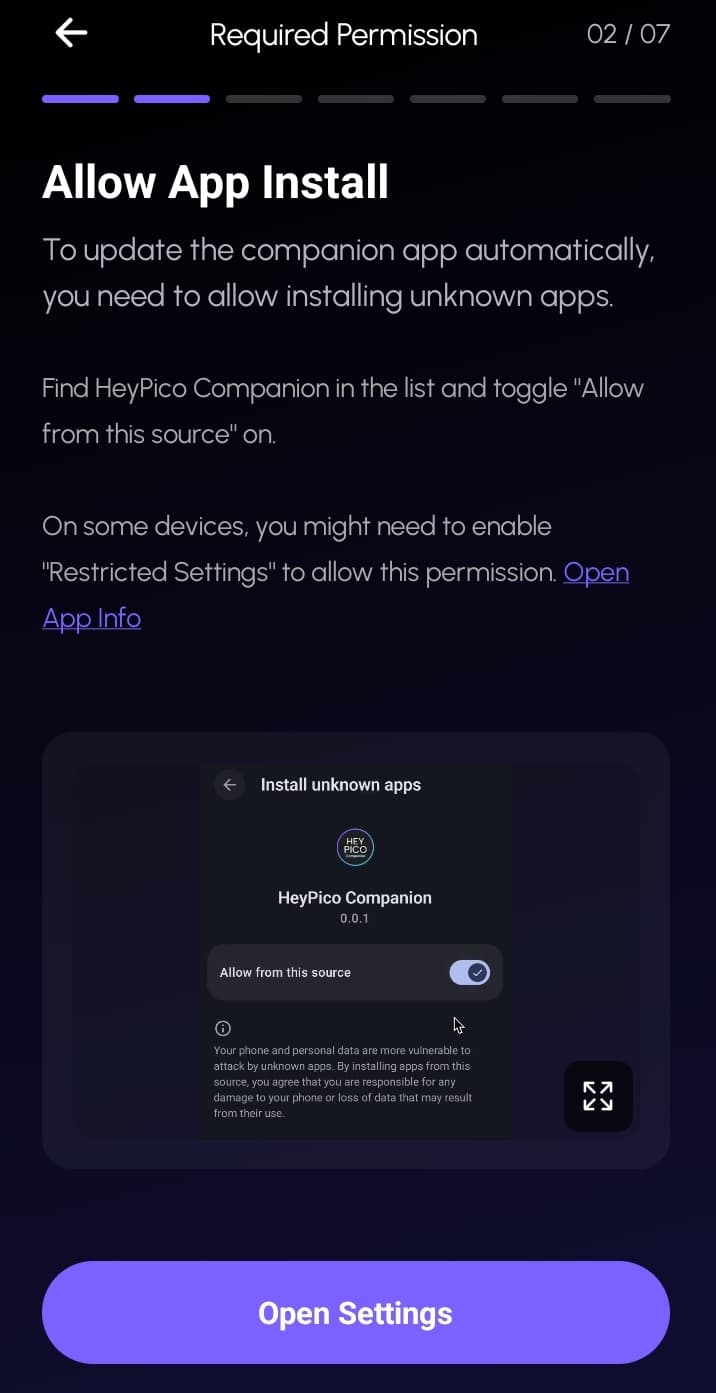

Before installing, go to Settings → Security → Play Protect and turn off Scan apps with Play Protect
Open the downloaded APK and tap Install

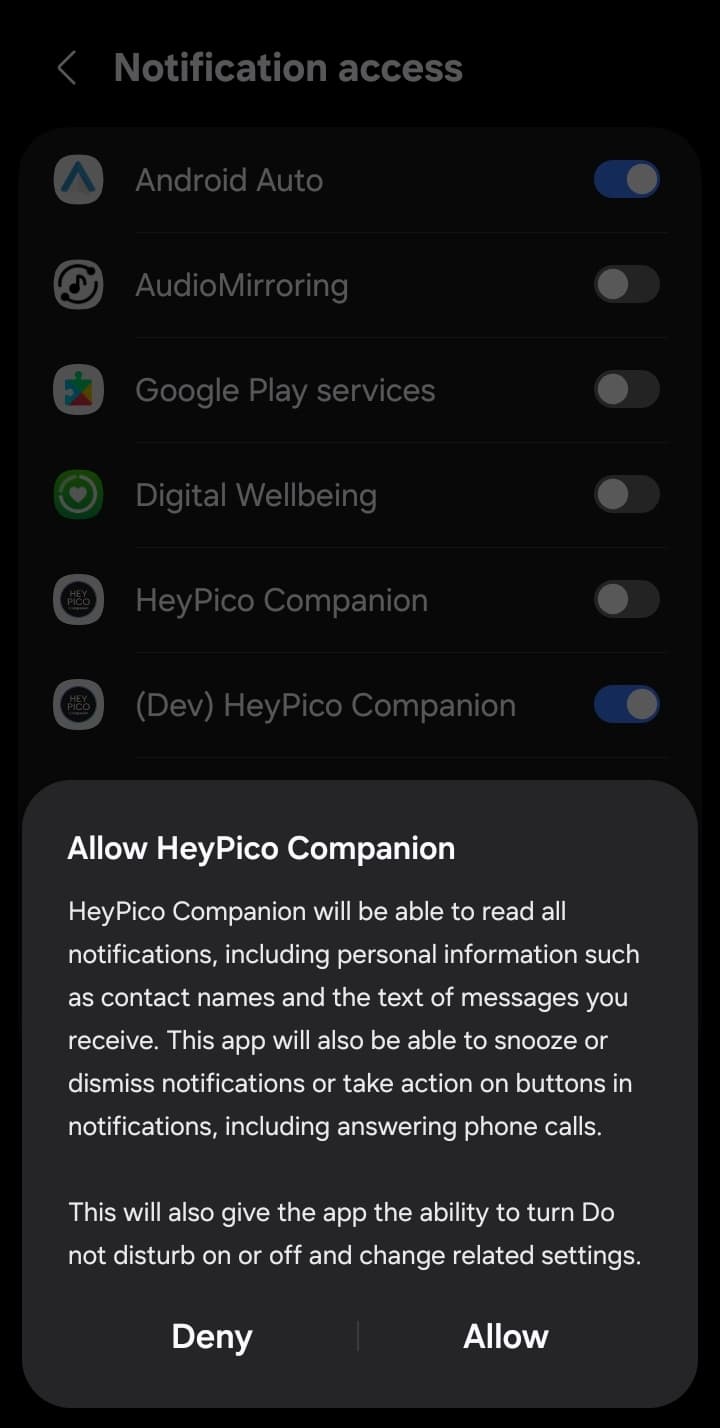

Required Permissions

The app needs several permissions to control your device. Follow the in-app guide for each one:

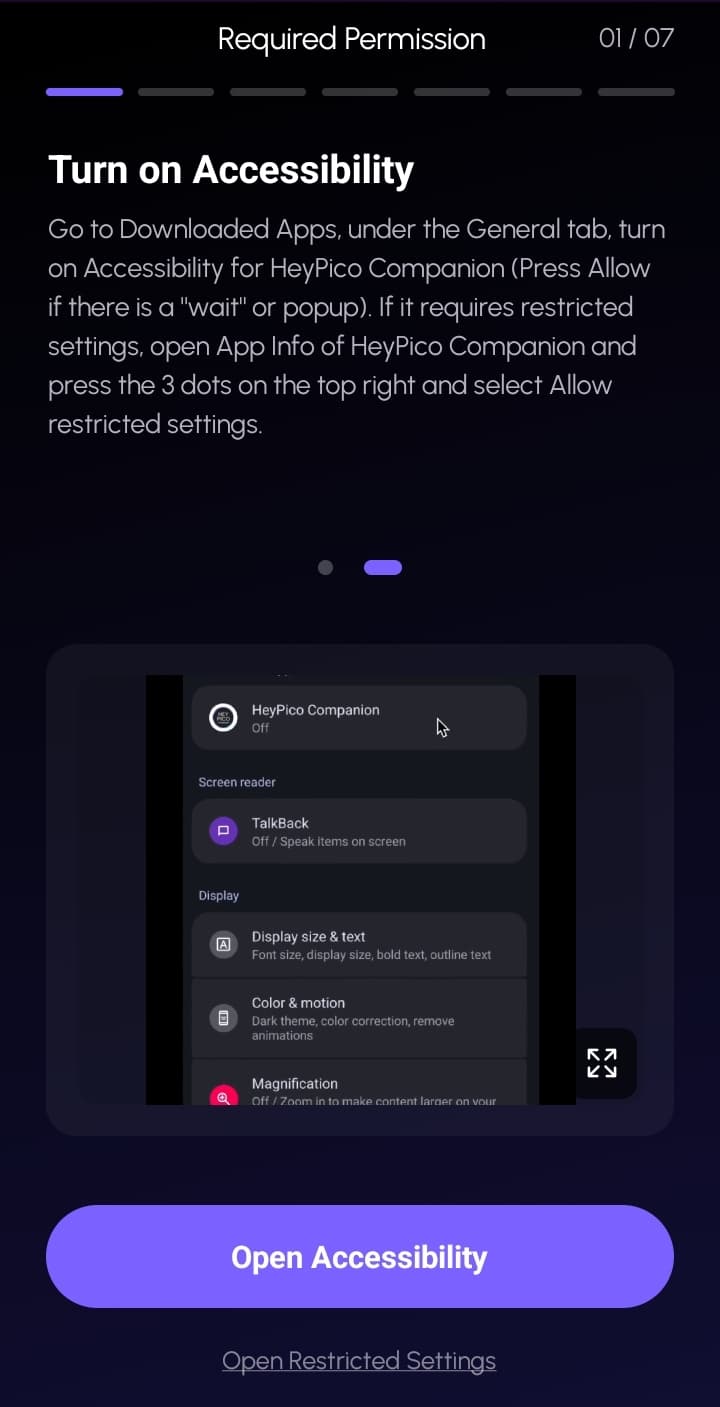

Accessibility & Restricted Settings — Lets HeyPico see and control your screen:

Tap Open Accessibility in the app

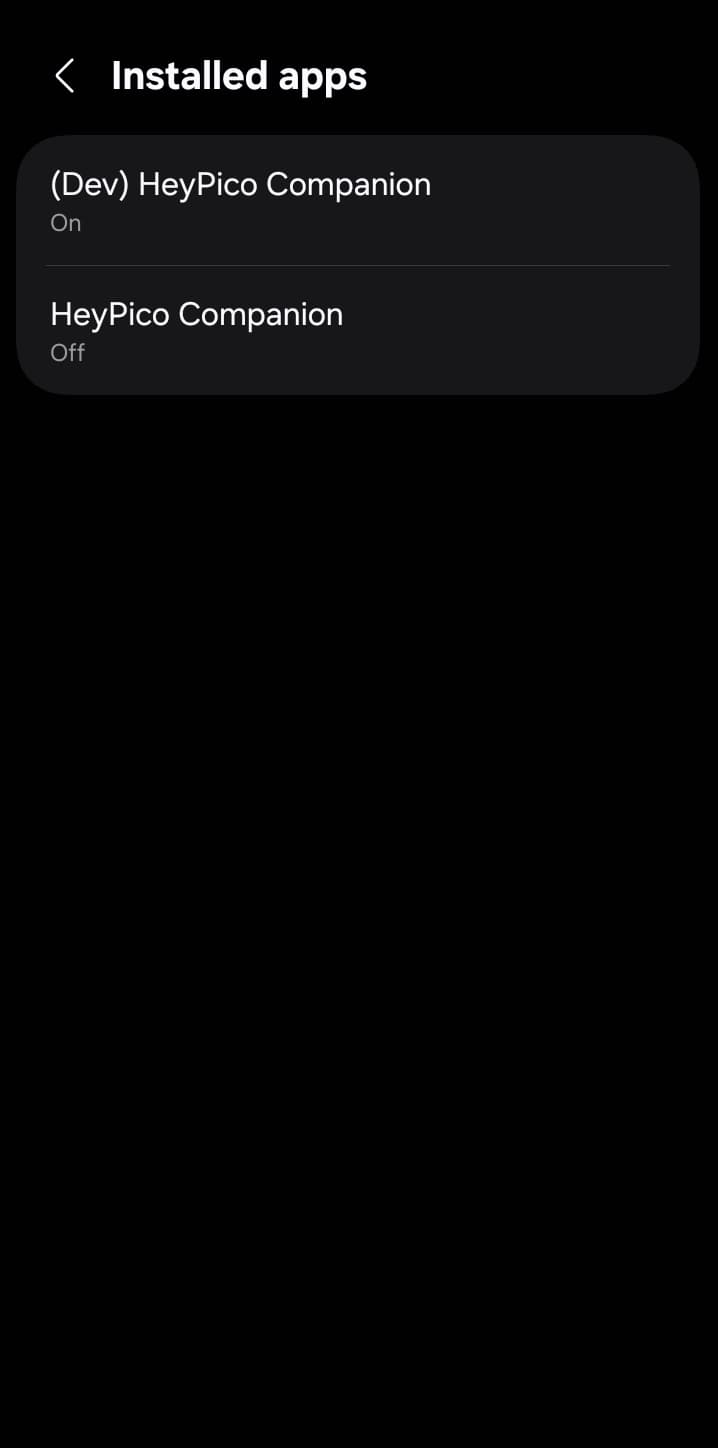

Turn on the toggle for HeyPico Companion

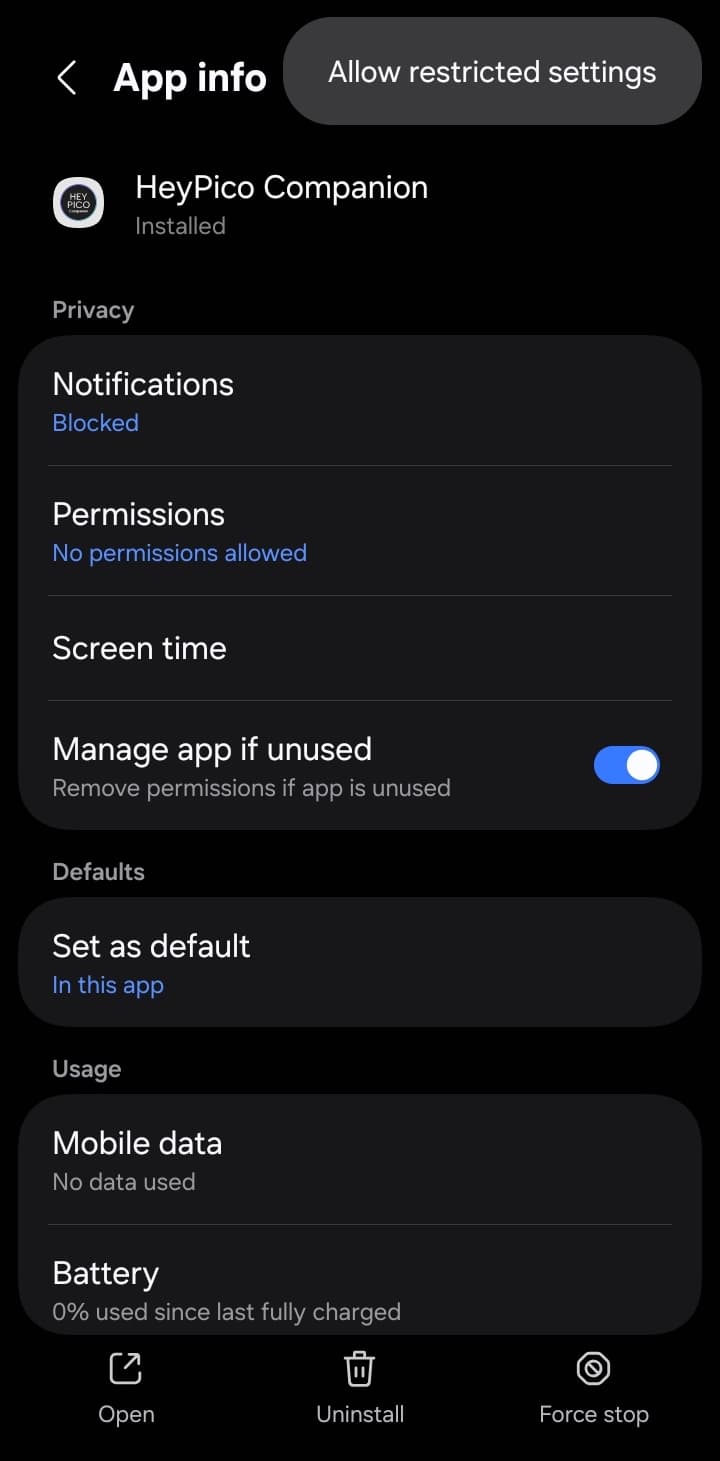

If denied, enable Restricted Settings from App Info → ⋮ → Allow Restricted Settings, then retry
When Android asks for full control, tap Allow

App Installation — Allows the companion app to update itself:

Tap Open Settings in the app
Find HeyPico Companion in the Install unknown apps list
Turn on Allow from this source

Notifications — Lets HeyPico read and act on notifications:

Tap Open Notification Settings in the app
Find HeyPico Companion under Notification access
Turn on the toggle and tap Allow

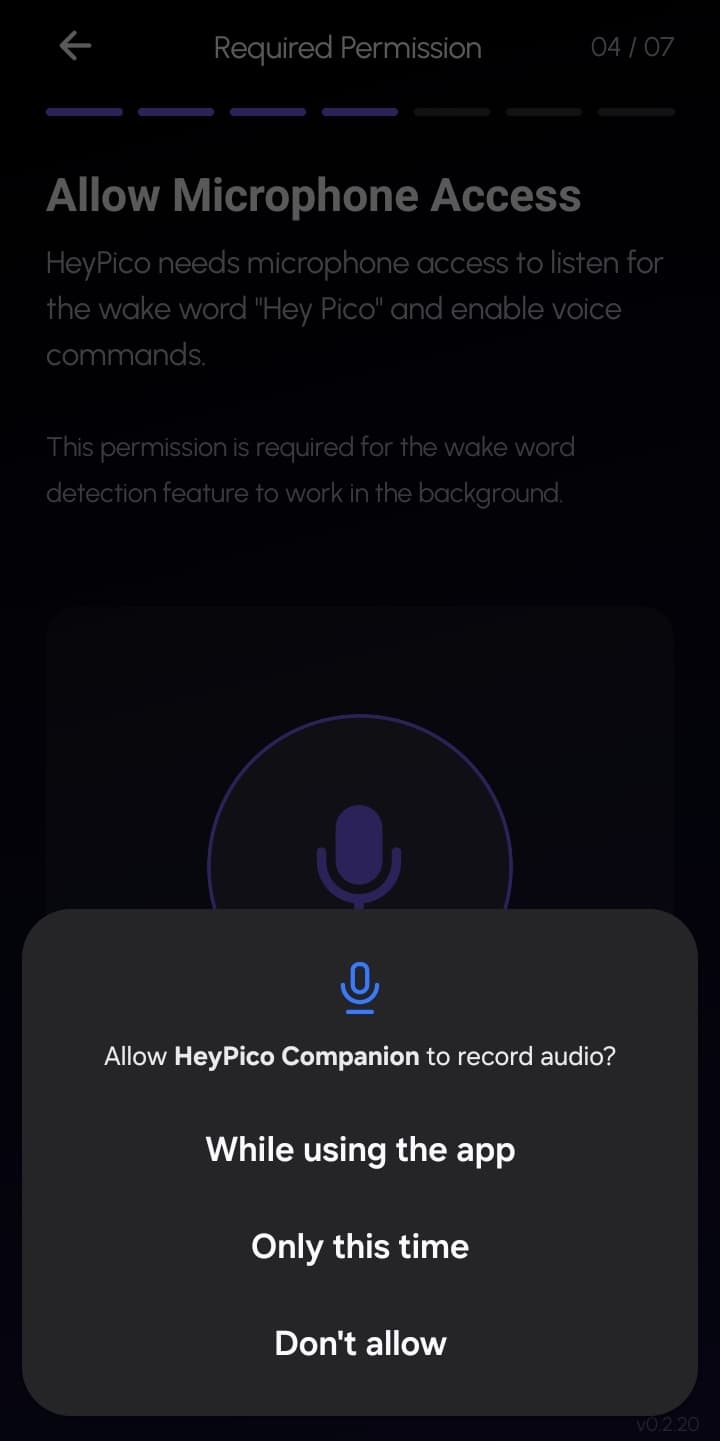

Microphone — Enables voice commands:

Tap Allow Microphone in the app
Choose While using the app

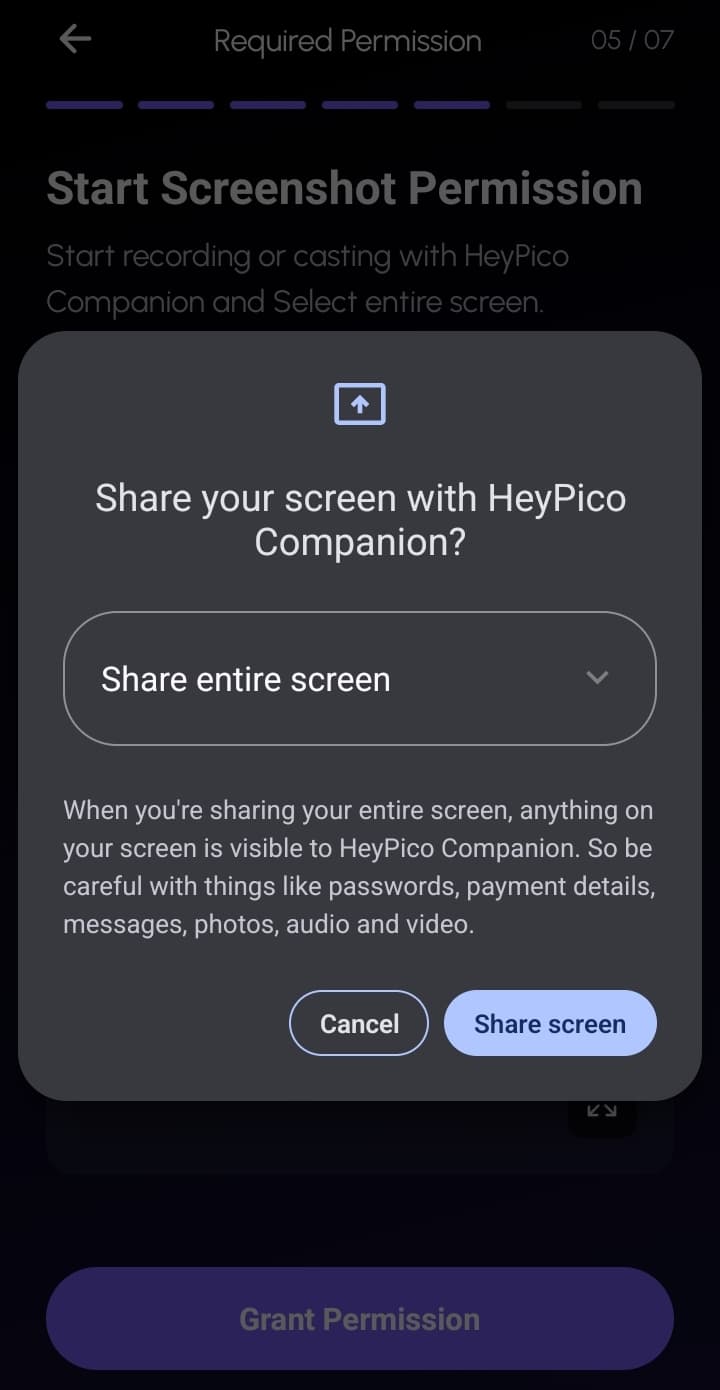

Screen Sharing — Lets HeyPico see your screen:

Tap Grant Permission in the app
Choose Share entire screen → Share screen
⚠️ Avoid entering passwords or payment details while sharing

Wake Lock — Keeps the connection alive:

Tap Activate Wake Lock in the app
Allow ignore battery optimizations for HeyPico Companion

Confirm Connection

Once all permissions are granted, the app shows a green "Connected" indicator. Keep it running in the background while using the Automation API.

Requirements:

Android 8.0 (Oreo) or higher
Active internet connection
Companion app must stay alive — use android_wake_and_unlock if the screen turns off

The companion app only receives commands from your HeyPico API key. It does not send personal data to HeyPico servers.

Core Methods

List Tools

Get all available automation tools.

Method: tools/list

Parameters:

includeHidden (optional): Set to true to include hidden/advanced tools

Call Tool

Execute a specific automation tool.

Method: tools/call

Parameters:

name: Tool name (e.g., android_tap)
arguments: Tool-specific parameters

Available Tools

Basic Interaction (8 tools):

android_tap — Tap at screen coordinates (x, y)
android_scroll — Scroll in direction (up/down/left/right)
android_swipe — Swipe between coordinates
android_back — Press back button
android_home — Press home button
android_long_press — Long press at coordinates
android_double_tap — Double tap at coordinates
android_swipe_from — Directional swipe from point

Text Input (3 tools):

android_input_text — Input text to focused field
android_enter — Press enter key
android_paste — Paste clipboard content

Element Finding & Interaction (9 tools):

android_get_ui_elements — Get full UI hierarchy
android_find_element — Find elements by text
android_click_element — Click element with wait
android_find_by_selector — Find by multiple criteria
android_click_by_selector — Click by selector with wait
android_wait_for_element — Wait for element to appear
android_input_text_by_selector — Input text by selector
android_dump_element_xml — Dump element XML with stability check
android_share_image — Share images to apps

Visual & Debugging (4 tools):

android_show_grid — Show coordinate grid overlay
android_hide_grid — Hide coordinate grid
android_get_screen_info — Get screen dimensions
android_screenshot — Capture screenshot

App Management (5 tools):

android_open_app — Open app by name or package
android_reset_current_app — Hard reset app to home page
android_close_app — Close app by package
android_get_installed_apps — List all apps
android_find_app — Search for apps

Volume & Media Control (4 tools):

android_set_volume — Set volume for stream
android_set_brightness — Set screen brightness (0-100)
android_adjust_volume — Adjust volume (raise/lower/mute)
android_media_control — Control media playback

Device Control (3 tools):

android_wake_and_unlock — Wake screen and unlock device
android_open_url — Open URL in browser
android_get_device_status — Get battery, volume, and device info

Clock & Alarms (2 hidden tools):

android_set_alarm — Set an alarm in Clock app
android_open_alarms — Open alarms list screen

Voice Chat (1 tool):

android_end_voice_chat — End active HeyPico voice chat session

Total: 30 public tools + 8 hidden tools = 38 tools

Workflow Example

Typical automation workflow sequence:

Wake and unlock — Prepare device (android_wake_and_unlock)
Open app — Launch target application (android_open_app)
Wait for element — Ensure UI is ready (android_wait_for_element)
Interact — Perform actions (tap, swipe, input text, etc.)
Verify — Check results (android_get_ui_elements)

MCP Automation Usage Examples


  # List available tools
curl -X POST https://public-api.heypico.ai/mcp/automation   -H "Content-Type: application/json"   -H "Authorization: Bearer hp_live_xxxxxxxx"   -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/list",
    "params": {}
  }'

  # Tap at coordinates
curl -X POST https://public-api.heypico.ai/mcp/automation   -H "Content-Type: application/json"   -H "Authorization: Bearer hp_live_xxxxxxxx"   -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/call",
    "params": {
      "name": "android_tap",
      "arguments": {
        "x": 500,
        "y": 1000
      }
    }
  }'

Error Handling

All errors follow a consistent format.

LLM API Error Response:

{
  "error": {
    "message": "Human-readable error description.",
    "type": "invalid_request_error",
    "param": null,
    "code": "invalid_api_key"
  }
}

MCP API Error Response (JSON-RPC):

{
  "jsonrpc": "2.0",
  "id": 1,
  "error": {
    "code": -32603,
    "message": "Internal error"
  }
}

Common Error Codes

HTTP / JSON-RPC	Code	Description
401	`invalid_api_key`	Missing, invalid, or expired API key
403	`insufficient_quota`	Token quota exhausted
400	`invalid_request`	Invalid request body
500 / -32603	`internal_error`	Internal server error
—	`-32700`	Parse error (Invalid JSON)
—	`-32600`	Invalid request
—	`-32601`	Method not found
—	`-32602`	Invalid parameters

Troubleshooting

401 Unauthorized

Symptoms: 401 response with invalid_api_key error.

Solutions:

Make sure your API key starts with hp_live_
Check that you are including the Authorization: Bearer header correctly
Generate a new key in the HeyPico app if the current one is expired
See Authentication for instructions on getting a key

403 Insufficient Quota

Symptoms: 403 response with insufficient_quota error.

Solutions:

Free accounts have 200,000 lifetime Pico tokens — check your usage in the app
Subscribe to a plan for a monthly token allowance
Top up with additional tokens in the app

400 Bad Request

Symptoms: 400 response with invalid_request error.

Solutions:

Ensure your request body is valid JSON
Verify that the messages array is not empty
Check that role is one of: system, user, assistant
Make sure Content-Type: application/json header is set

MCP Connection Issues

Symptoms: Cannot connect to public-api.heypico.ai/mcp/llm or public-api.heypico.ai/mcp/automation.

Solutions:

Verify the endpoint URL is correct (/mcp/llm vs /mcp/automation)
Ensure you are using POST method with JSON-RPC 2.0 format
Check that the jsonrpc field is set to "2.0"
Make sure method is one of: tools/list, tools/call

Android Automation Not Working

Symptoms: Automation tools return errors or timeouts.

Solutions:

Enable the Accessibility Service for the HeyPico app on the target device
Make sure the device is connected and unlocked
For secure lock screens, android_wake_and_unlock cannot bypass PIN/pattern
Use android_wait_for_element before interacting with dynamic UI elements

Quota

Check your quota in the HeyPico app under Settings → Account.

Rate Limits

Tier	Requests per Minute (RPM)
FREE	10
PRO	100
ENTERPRISE	1000

Rate limiting is based on your API key's tier, set at key creation time.

Support

For issues or questions, please contact:

Telegram: https://t.me/heypico
Help Center: https://help.heypico.ai
